Advanced aluminum shock absorber with adjustable compression for optimal performance.

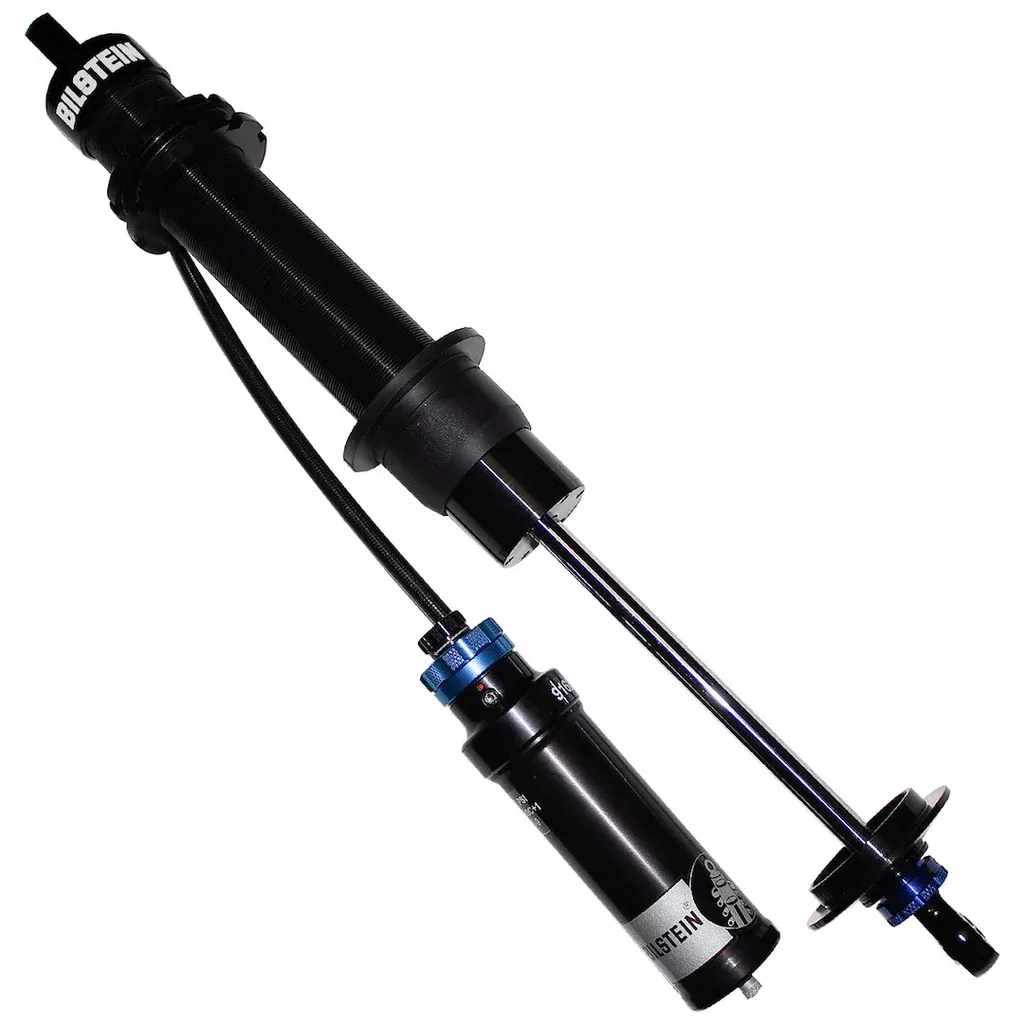

The Bilstein AS2-R Series Shock Absorber is engineered for high-performance applications, featuring a lightweight modular aluminum construction that enhances durability and precision. With an extended length of 23.17 inches and a compressed length of 15.33 inches, this shock absorber is designed to meet a variety of track conditions and driver preferences. The independent high and low compression adjusters allow for fine-tuning of the damping characteristics, ensuring consistent performance under varying conditions.
This shock absorber utilizes Bilstein’s advanced reservoir technology, which includes a tunable base valve assembly for maximum versatility. The 6061 aluminum extruded body and reservoir are hard anodized to maintain tighter tolerances and resist wear. The 3-way tuning system provides high and low compression adjustments on the reservoir and rebound adjustments on the shaft, allowing for comprehensive customization of the damping settings.
The AS2-R Series also features a high-performance rod guide seal pack that exceeds original equipment quality standards, ensuring low shaft friction and reliability in harsh racing environments. Additionally, the braided stainless steel Dash 5 hose enhances oil flow and reduces hysteresis, while the modular configuration allows for easy rebuild and repair, making it a practical choice for serious racers.
Features
- 6061 Aluminum Extruded, Hard Anodized Body And Reservoir Provides Durability And Maintains Tighter Tolerances
- Completely Independent High And Low Speed Adjustment
- High Speed Control Through Preloaded Cage For Consistent Adjustments And Better Range, And Low Speed Control Through Needle And Jet Assembly For Extra Fine Tunability
- 46 Millimeter Base Valve Provides Optimal Flow And Replenishment Balance While Allowing Lower Rod Forces To Be Used
- Components Are Billet Machined Anodized Aluminum For Precision Tolerance And Fit
- 3-Way Tuning: High/Low Compression On Reservoir And Rebound On Shaft
- Modular Configuration For Easy Rebuild And Repair
- High Performance Rod Guide Seal Pack That Exceeds OE Quality Durability Requirements, Provides Low Shaft Friction And Withstands Harsh Racing Environments
- Braided Stainless Steel Dash 5 Hose Delivers Better Oil Flow With Less Hysteresis. Banjo Fittings For Easier Mounting
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-311593
- With Coil Spring: No
- Extended Length (IN): 23.17 Inch
- Compressed Length (IN): 15.33 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Quantity: Single
- Universality: Fully Universal
- Internal Design: Monotube
- Estimated Install Time (Hours): 0.5
