Advanced damping technology for enhanced motorsports performance.

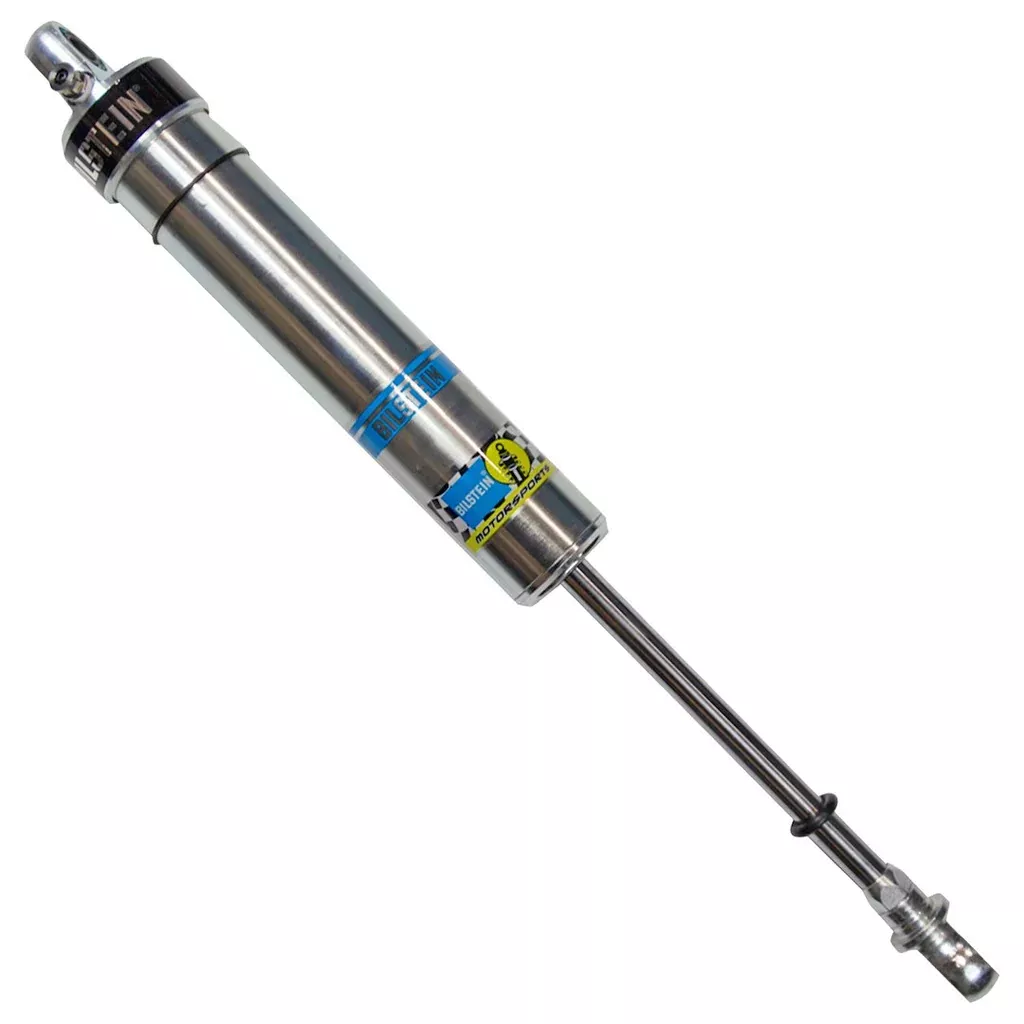

The Bilstein SNS 2 Series Shock Absorber is engineered for motorsports applications, featuring a robust 46 millimeter steel body and innovative base valve technology. This design allows for ultra-low rod pressures, eliminating gas preload and enhancing fade-free performance. The shock absorber is modular and racer rebuildable, providing flexibility for customization and maintenance.
With a smooth body screw top and a digressive piston, the SNS 2 Series delivers superior grip on slick tracks while maintaining excellent track feel. The precision-balanced base valve enables enhanced tuning capabilities, allowing for optimal performance adjustments. The monotube design with a free-floating divider piston maximizes heat transfer, preventing fading and cavitation during intense racing conditions.
Constructed with a 14 millimeter case hardened stainless steel chrome shaft, this shock absorber minimizes seal drag and resists damage from debris. The SNS 2 Series is designed for precise fluid control, ensuring durability and reliability in high-performance environments. Upgrade options are available to increase nitrogen chamber capacity for further performance enhancements.
Features
- Base Valve Technology Allows Ultra Low Rod Pressures To Eliminate Gas Preload And Increase BILSTEIN’s Famous Fade Free Performance
- Provides Superior Grip On Slick Tracks And Supplies In The Track Feel
- SNS2-BV Design Allows The Shock Builder To Easily Disassemble And Balance The Base Valve Piston With The Shock’s Working Piston
- 46 Millimeter Extruded Steel Body With Ultra Smooth ID Finish Provides Superior Fitment Tolerances With The Large 46 Millimeter Working Piston Design For Precise Fluid Control
- 14 Millimeter Case Hardened Stainless Steel Chrome Shaft That Provides Low Seal Drag/ Friction And Resists Stone Chips And Dings
- Monotube Design With Free Floating Divider Piston Maximizes Heat Transfer And Dissipation To Avoid Fading And Cavitation While Delivering Excellent Durability
- Upgradeable To Big Bulb Design (Parts Sold Separately) To Increase Nitrogen Chamber Capacity To Achieve Ultra-Low Rod Pressures
Specifications
- Manufacturer: Bilstein
- Manufacturer Part Number: 33-304052
- With Coil Spring: No
- Extended Length (IN): 19.8 Inch
- Compressed Length (IN): 12.99 Inch
- Adjustable Valving: No
- Universality: Semi-Universal
- Valving Type: Non Adjustable Valving
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
Technical Documents
- Generic_instructions_02.pdf
- warranty_all_v4.2.pdf
- USA_SDS_Shock_Air_Spring_V2_EN.pdf
- BILSTEIN_Measure_a_Shock.pdf
- Generic_instructions_02.pdf
- BILSTEIN_Measure_a_Shock.pdf
- USA_SDS_Shock_Air_Spring_V2_EN.pdf
